SpringBoot集成editor.md

Editor.md——功能非常丰富的编辑器，左端编辑，右端预览，非常方便，完全免费。

基础工程搭建

article：文章表

字段 类型 备注
id int 文章的唯一ID
author varchar 作者
title varchar 标题
content longtext 文章的内容

建表SQL：

1
2
3
4
5
6
7
CREATE TABLE `article` (
`id` int(10) NOT NULL AUTO_INCREMENT COMMENT 'int文章的唯一ID',
`author` varchar(50) NOT NULL COMMENT '作者',
`title` varchar(100) NOT NULL COMMENT '标题',
`content` longtext NOT NULL COMMENT '文章的内容',
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8

实体类

1
2
3
4
5
6
7
8
9
10
11
12
//文章类
@Data
@NoArgsConstructor
@AllArgsConstructor
public class Article implements Serializable {

   private int id; //文章的唯一ID
   private String author; //作者名
   private String title; //标题
   private String content; //文章的内容

}

mapper接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Mapper
@Repository
public interface ArticleMapper {
   //查询所有的文章
   List<Article> queryArticles();

   //新增一个文章
   int addArticle(Article article);

   //根据文章id查询文章
   Article getArticleById(int id);

   //根据文章id删除文章
   int deleteArticleById(int id);

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.kuang.mapper.ArticleMapper">

   <select id="queryArticles" resultType="Article">
      select * from article
   </select>

   <select id="getArticleById" resultType="Article">
      select * from article where id = #{id}
   </select>

   <insert id="addArticle" parameterType="Article">
      insert into article (author,title,content) values (#{author},#{title},#{content});
   </insert>

   <delete id="deleteArticleById" parameterType="int">
      delete from article where id = #{id}
   </delete>

</mapper>

文章编辑整合

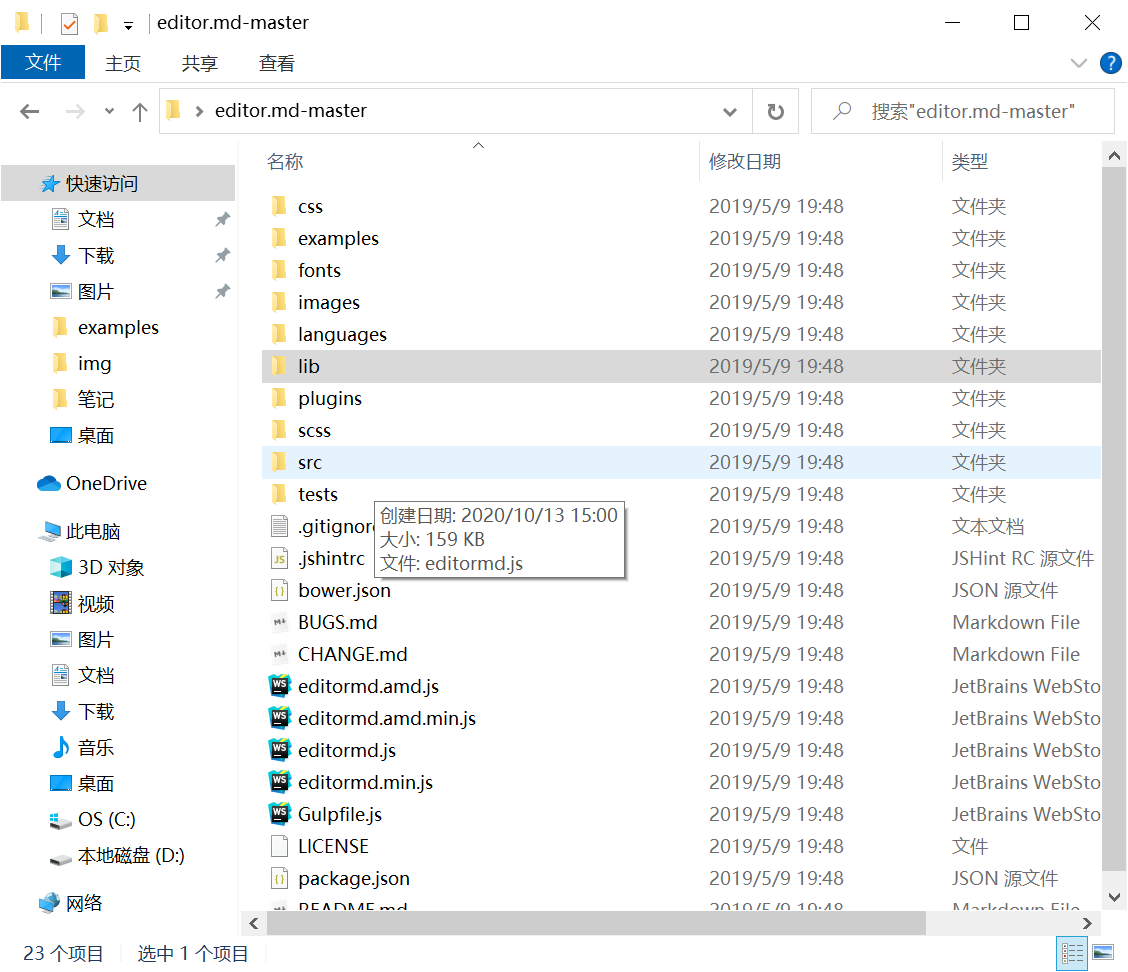

下载好的项目结构

进入examples文件夹css和js文件夹粘到项目的static文件夹下，另外粘贴项目根目录下的css文件夹的editormd.css和js文件夹下的editormd.js，最后把整个lib也粘贴过来。

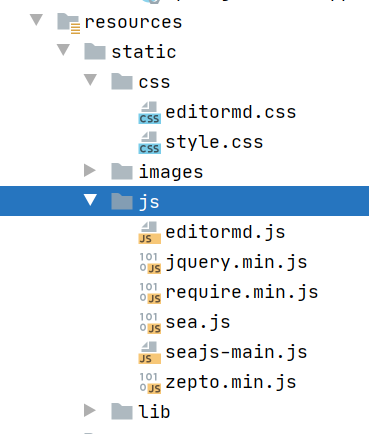

项目路径

编辑文章页面 editor.html、需要引入 jQuery；

需要修改css和js的路径，和path的路径

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
<!DOCTYPE html>
<html class="x-admin-sm" lang="zh" xmlns:th="http://www.thymeleaf.org">

<head>
    <meta charset="UTF-8">
    <title>demo</title>
    <meta name="renderer" content="webkit">
    <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
    <meta name="viewport" content="width=device-width,user-scalable=yes, minimum-scale=0.4, initial-scale=0.8,target-densitydpi=low-dpi" />
    <!--Editor.md-->
    <link rel="stylesheet" th:href="@{/css/style.css}">
    <link rel="stylesheet" th:href="@{/css/editormd.css}"/>
    <link rel="shortcut icon" href="https://pandao.github.io/editor.md/favicon.ico" type="image/x-icon" />
</head>

<body>

<div class="layui-fluid">
    <div class="layui-row layui-col-space15">
        <div class="layui-col-md12">
            <!--博客表单-->
            <form name="mdEditorForm">
                <div>
                    标题：<input type="text" name="title">
                </div>
                <div>
                    作者：<input type="text" name="author">
                </div>
                <div id="article-content">
                    <textarea name="content" id="content" style="display:none;"> </textarea>
                </div>
            </form>
        </div>
    </div>
</div>
</body>

<!--editormd-->
<script th:src="@{/js/jquery.min.js}"></script>
<script th:src="@{/js/editormd.js}"></script>

<script type="text/javascript">
    var testEditor;

    //window.onload = function(){ }
    $(function() {
        testEditor = editormd("article-content", {
            width : "100%",
            height : 600,
            syncScrolling : "single",
            path : "../lib/",
            saveHTMLToTextarea : true,    // 保存 HTML 到 Textarea
            emoji: true,
            theme: "default",//工具栏主题
            previewTheme: "default",//预览主题
            editorTheme: "pastel-on-default",//编辑主题
            tex : true,                   // 开启科学公式TeX语言支持，默认关闭
            flowChart : true,             // 开启流程图支持，默认关闭
            sequenceDiagram : true,       // 开启时序/序列图支持，默认关闭,
            //图片上传
            imageUpload : true,
            imageFormats : ["jpg", "jpeg", "gif", "png", "bmp", "webp"],
            imageUploadURL : "/article/file/upload",
            onload : function() {
                console.log('onload', this);
            },
            /*指定需要显示的功能按钮*/
            toolbarIcons : function() {
                return ["undo","redo","|",
                    "bold","del","italic","quote","ucwords","uppercase","lowercase","|",
                    "h1","h2","h3","h4","h5","h6","|",
                    "list-ul","list-ol","hr","|",
                    "link","reference-link","image","code","preformatted-text",
                    "code-block","table","datetime","emoji","html-entities","pagebreak","|",
                    "goto-line","watch","preview","fullscreen","clear","search","|",
                    "help","info","releaseIcon", "index"]
            },

            /*自定义功能按钮，下面我自定义了2个，一个是发布，一个是返回首页*/
            toolbarIconTexts : {
                releaseIcon : "<span bgcolor=\"gray\">发布</span>",
                index : "<span bgcolor=\"red\">返回首页</span>",
            },

            /*给自定义按钮指定回调函数*/
            toolbarHandlers:{
                releaseIcon : function(cm, icon, cursor, selection) {
                    //表单提交
                    mdEditorForm.method = "post";
                    mdEditorForm.action = "/article/addArticle";//提交至服务器的路径
                    mdEditorForm.submit();
                },
                index : function(){
                    window.location.href = '/';
                },
            }
        });
    });
</script>

</html>

编写Controller，进行跳转，以及保存文章

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@Controller
@RequestMapping("/article")
public class ArticleController {

   @GetMapping("/toEditor")
   public String toEditor(){
       return "editor";
  }

   @PostMapping("/addArticle")
   public String addArticle(Article article){
       articleMapper.addArticle(article);
       return "editor";
  }
}

图片上传问题

js中添加

1
2
3
4
//图片上传
imageUpload : true,
imageFormats : ["jpg", "jpeg", "gif", "png", "bmp", "webp"],
imageUploadURL : "/article/file/upload", // //这个是上传图片时的访问地址

后端请求，接收保存这个图片, 需要导入 FastJson 的依赖！

1
2
3
4
5
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.66</version>
</dependency>

controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
//博客图片上传问题
    @RequestMapping("/file/upload")
    @ResponseBody
    public JSONObject fileUpload(@RequestParam(value = "editormd-image-file", required = true) MultipartFile file, HttpServletRequest request) throws IOException {
        //上传路径保存设置

        //获得SpringBoot当前项目的路径：System.getProperty("user.dir")
        String path = System.getProperty("user.dir")+"/upload/";

        //按照月份进行分类：
//        Calendar instance = Calendar.getInstance();
//        String month = (instance.get(Calendar.MONTH) + 1)+"月";
//        path = path+month;

        File realPath = new File(path);
        if (!realPath.exists()){
            realPath.mkdir();
        }

        //上传文件地址
        System.out.println("上传文件保存地址："+realPath);

        //解决文件名字问题：我们使用uuid;
        String filename = UUID.randomUUID().toString().replaceAll("-", "");
        //通过CommonsMultipartFile的方法直接写文件（注意这个时候）
        file.transferTo(new File(realPath +"/"+ filename));

        //给editormd进行回调
        JSONObject res = new JSONObject();
        res.put("url","/upload/"+"/"+ filename);
        res.put("success", 1);
        res.put("message", "upload success!");

        return res;
    }

解决文件回显显示的问题，设置虚拟目录映射！在我们自己拓展的MvcConfig中进行配置即可！

1
2
3
4
5
6
7
8
9
10
11
12
@Configuration
public class MyMvcConfig implements WebMvcConfigurer {

   // 文件保存在真实目录/upload/下，
   // 访问的时候使用虚路径/upload，比如文件名为1.png，就直接/upload/1.png就ok了。
   @Override
   public void addResourceHandlers(ResourceHandlerRegistry registry) {
       registry.addResourceHandler("/upload/**")
          .addResourceLocations("file:"+System.getProperty("user.dir")+"/upload/");
  }

}

文章展示

controller增加方法

1
2
3
4
5
6
@GetMapping("/{id}")
public String show(@PathVariable("id") int id,Model model){
   Article article = articleMapper.getArticleById(id);
   model.addAttribute("article",article);
   return "article";
}

编写页面 article.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1">
    <title th:text="${article.title}"></title>
</head>
<body>

<div>
    <!--文章头部信息：标题，作者，最后更新日期，导航-->
    <h2 style="margin: auto 0" th:text="${article.title}"></h2>
    作者：<span style="float: left" th:text="${article.author}"></span>
    <!--文章主体内容-->
    <div id="doc-content" style="width: 80%;margin-left: 10%">
        <textarea style="display:none;" placeholder="markdown" th:text="${article.content}"></textarea>
    </div>

</div>

<link rel="stylesheet" th:href="@{/editormd/css/editormd.preview.css}" />
<script th:src="@{/js/jquery.min.js}"></script>
<script th:src="@{/lib/marked.min.js}"></script>
<script th:src="@{/lib/prettify.min.js}"></script>
<script th:src="@{/lib/raphael.min.js}"></script>
<script th:src="@{/lib/underscore.min.js}"></script>
<script th:src="@{/lib/sequence-diagram.min.js}"></script>
<script th:src="@{/lib/flowchart.min.js}"></script>
<script th:src="@{/lib/jquery.flowchart.min.js}"></script>
<script th:src="@{/js/editormd.js}"></script>

<script type="text/javascript">
    var testEditor;
    $(function () {
        testEditor = editormd.markdownToHTML("doc-content", {//注意：这里是上面DIV的id
            htmlDecode: "style,script,iframe",
            emoji: true,
            taskList: true,
            tocm: true,
            tex: true, // 默认不解析
            flowChart: true, // 默认不解析
            sequenceDiagram: true, // 默认不解析
            codeFold: true
        });});
</script>
</body>
</html>

同样需要修改js和css
